Project Details

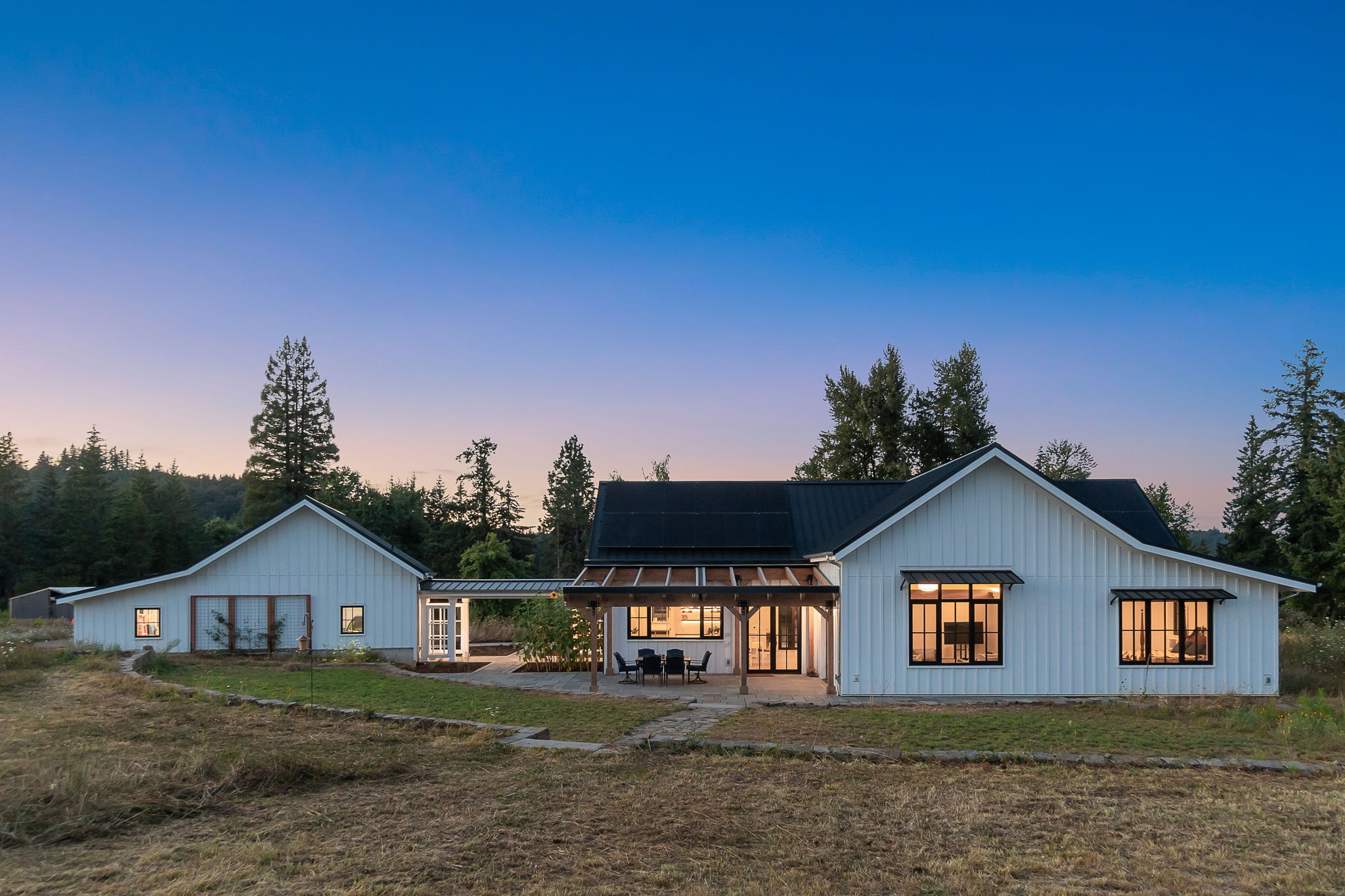

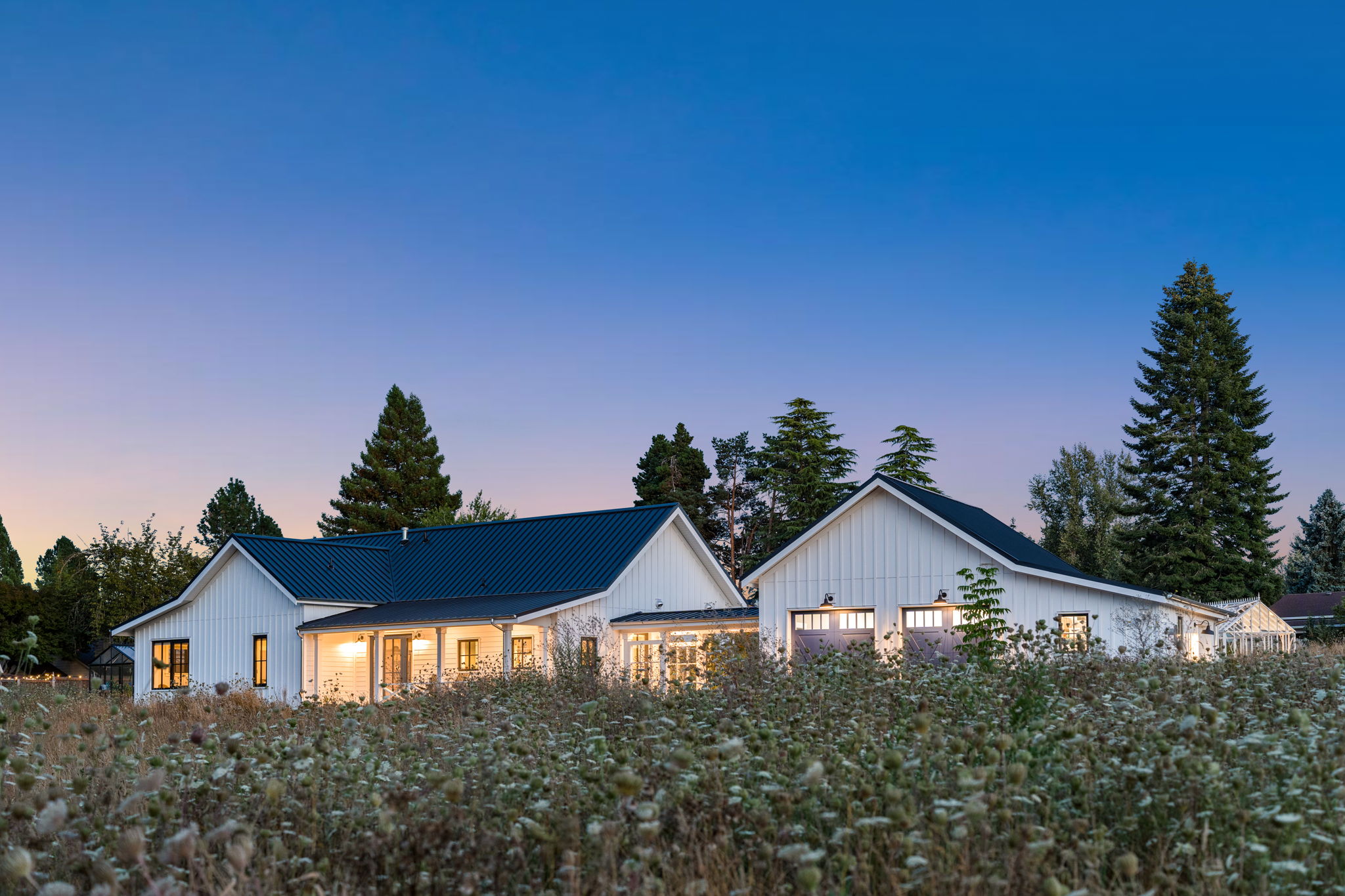

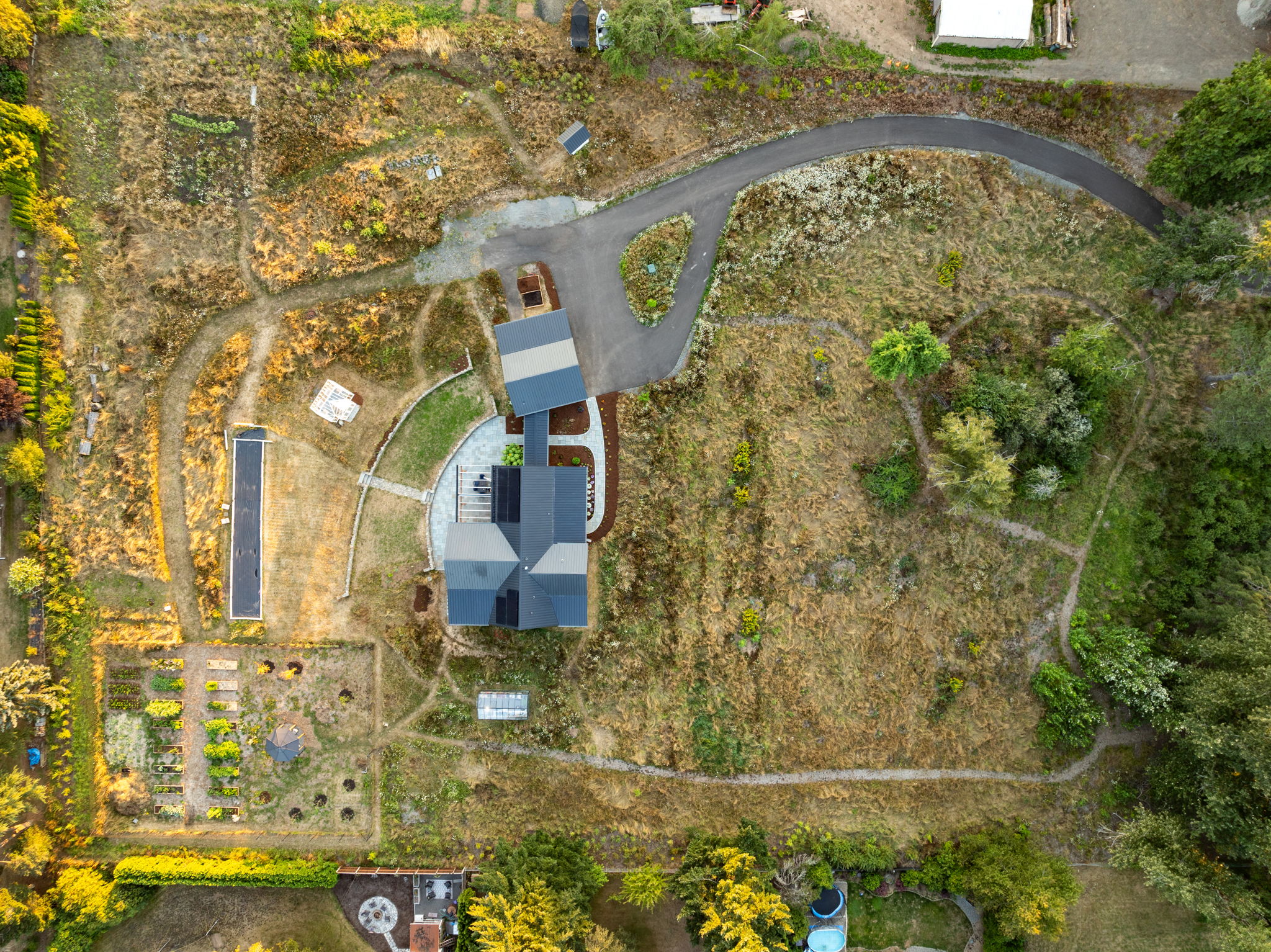

Just outside of Portland, these five acres are a dreamy amount of space to build a Passive House. The ability to orient a home so that it aligns with the contours of the land and the essential directions, and one that is up to Passive House standards is a captivating challenge for a designer, and it's exciting to fully do this project in-house.
This home has a unique concrete-free slab on grade foundation to reduce upfront carbon emmissions (See Josh's article in Fine Homebuilding Magazine about it here ), includes a Glo European window package, a Zehnder Q350 for ventilation with an Amaircare Airwash for fresh air-- even during more and more common smoke events, a Mitsubishi heat pump for heating and cooling, and it is a certified Passive House through Phius.
This home has a unique concrete-free slab on grade foundation to reduce upfront carbon emmissions (See Josh's article in Fine Homebuilding Magazine about it here ), includes a Glo European window package, a Zehnder Q350 for ventilation with an Amaircare Airwash for fresh air-- even during more and more common smoke events, a Mitsubishi heat pump for heating and cooling, and it is a certified Passive House through Phius.
Specifications:
- Type: New Single Family Residential - Passive House

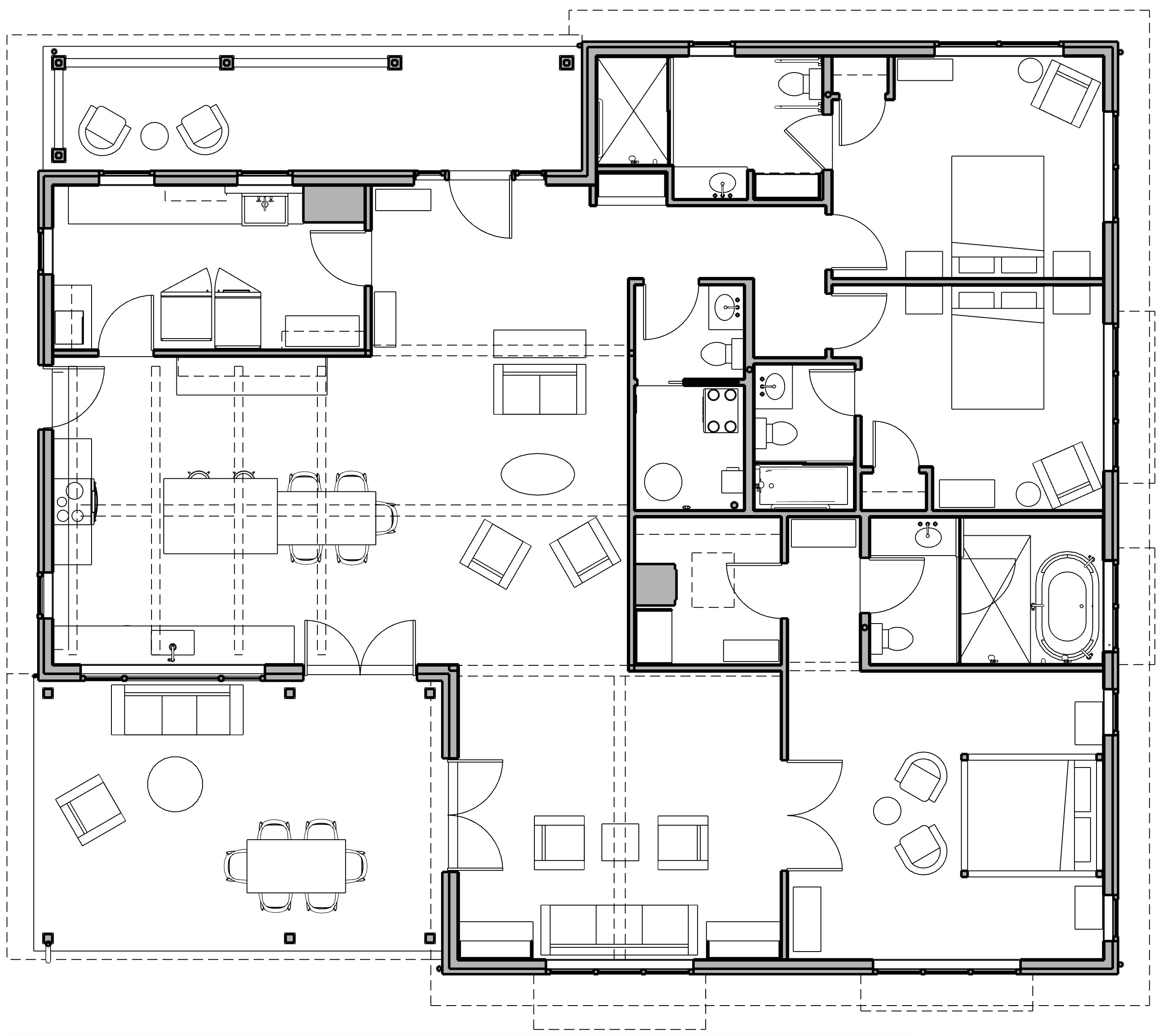

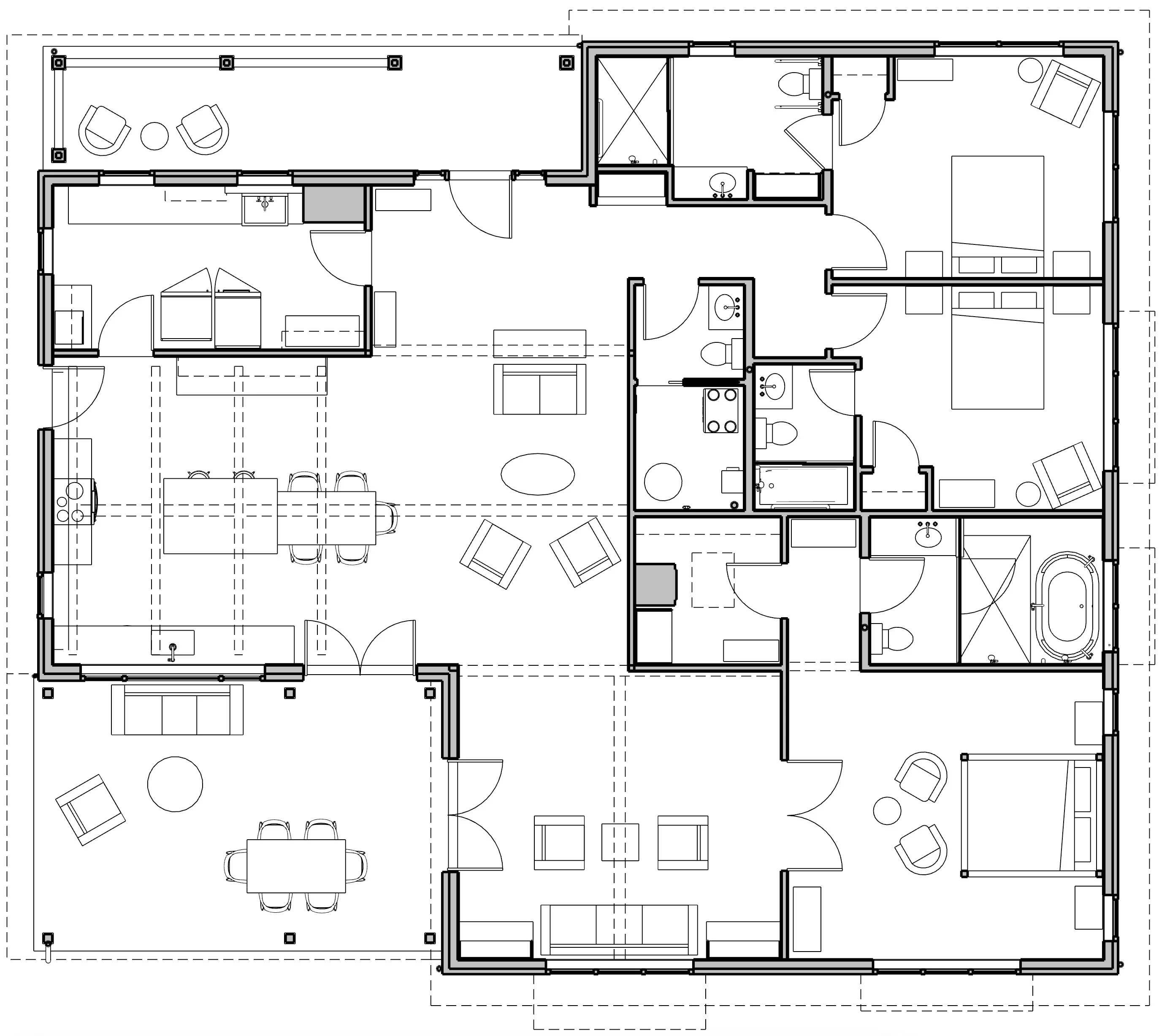

- Home Specifics: Damascus, OR. 2,350 sf, 3br 4ba.
- Certifications: PHIUS 2021 Source Zero, Earth Advantage Zero Energy, DOE ZERH, Energy Star, Indoor Air Plus, WaterSense
- Assemblies: 2x6 FSC certified intermediate framed wall with dense pack cellulose insulation, plywood sheathing, Siga Majvest SA500 membrane, 2.25" Wood Fiberboard exterior insulation. 4" Fomular XPS insulation below the plywood slab, R-60 cellulose roof insulation.
- Mechanical Systems: Mitsubishi Hyper Heat ducted heat pump, Electric radiant tile, Zehnder ComfoAir Q 350 ERV, Airwash Whisper 350 HEPA System, SanCO Split heat pump water heater, low flow toilets and an on-demand hot water recirculation loop for near-instant hot water.

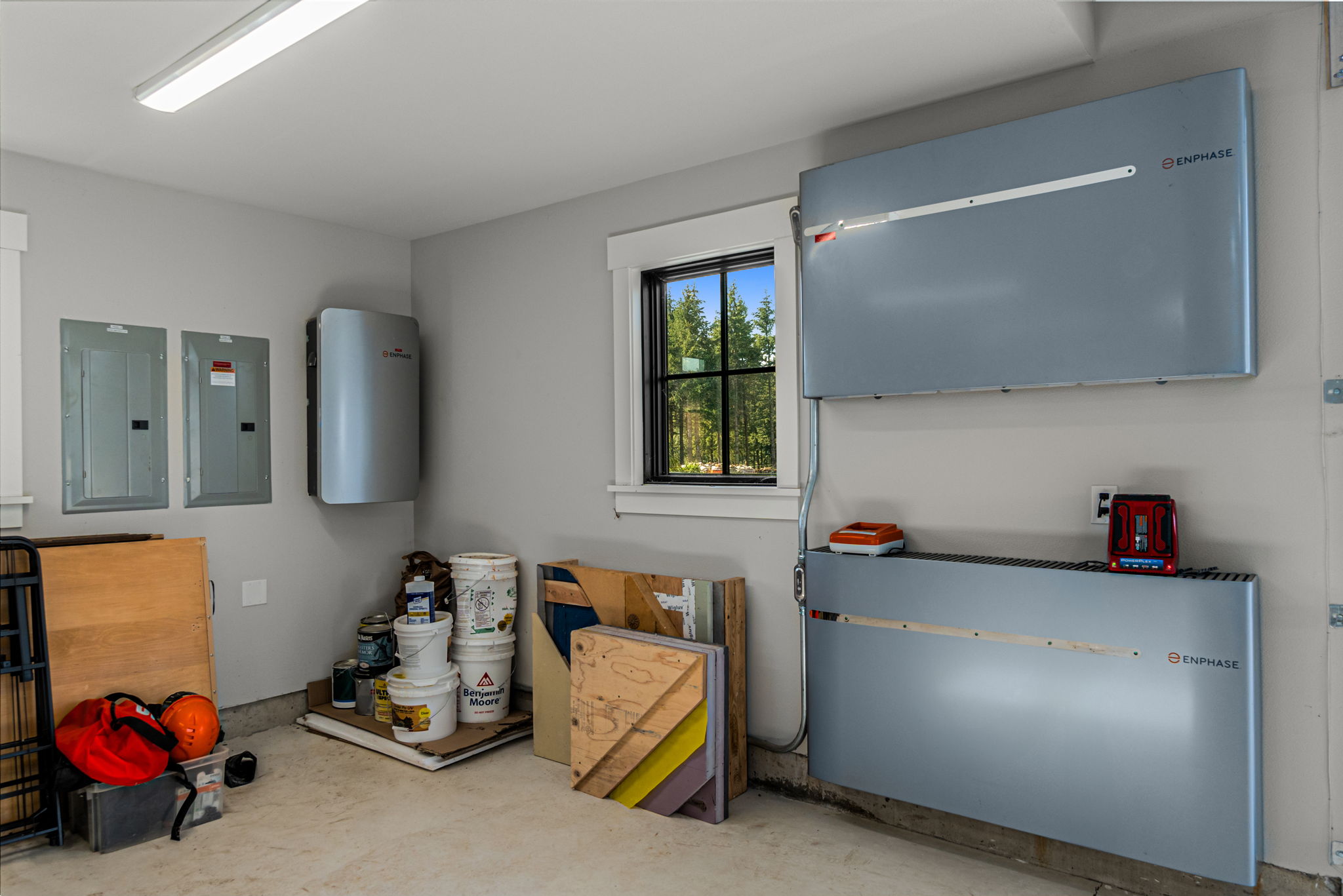

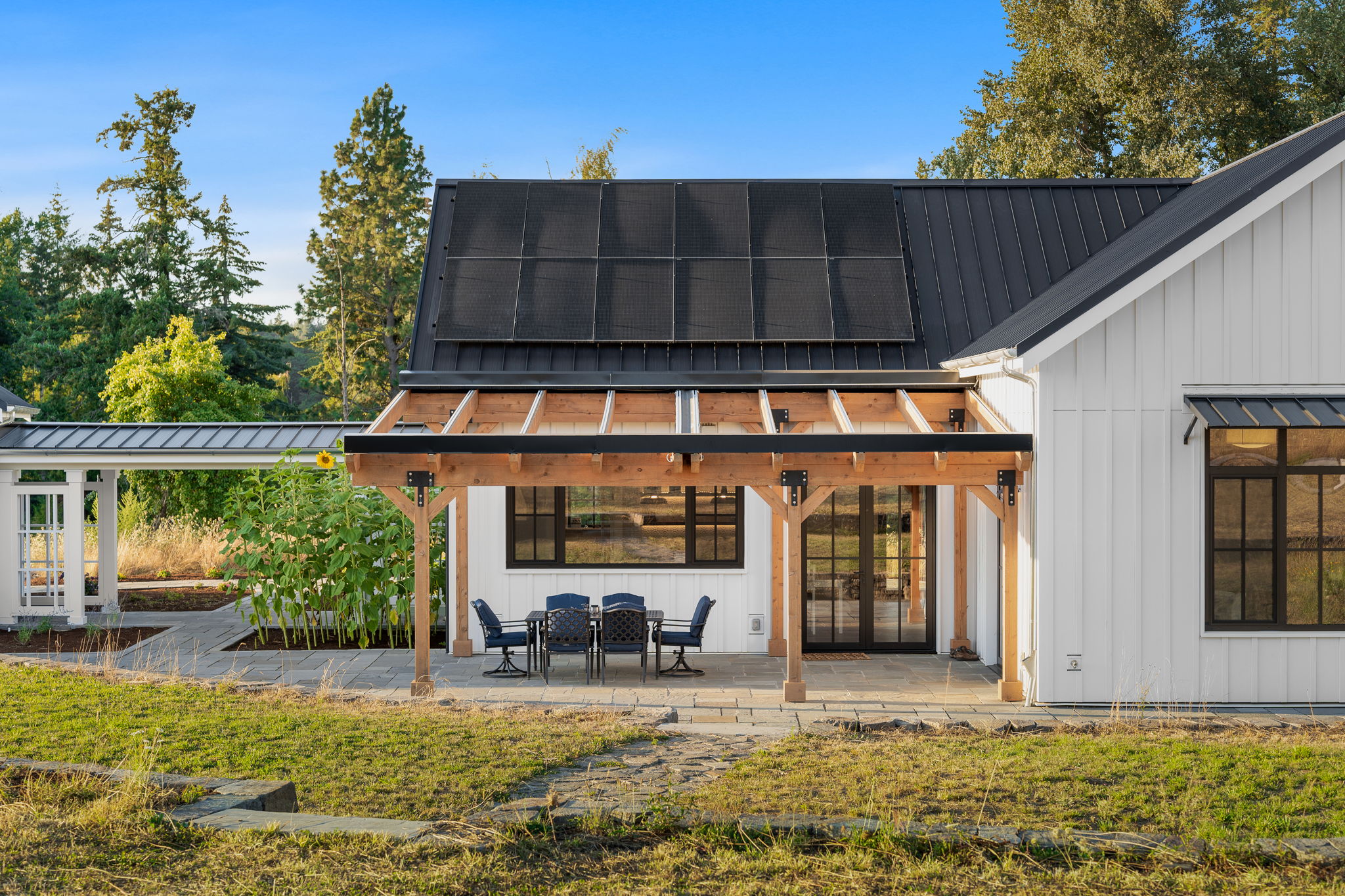

- Solar & Storage: 6.75 kW Solar Photovoltaic Array with 2 Enphase home batteries with 22kWh storage
